Thermal container liners
An efficient solution to protect goods in containers
Sopack s.r.o. introduces the easiest way to protect and ship temperature-sensitive cargo
TP Woven (thermoregulation liner) is a protective foil liner for standard dry ocean shipping containers. TP Woven thermal liner is produced and designed to insulate products against radiation, container rain and cargo sweat. The unpredictable temperatures, long ocean transit times, transportation to final customer etc. make container shipping very problematic. Whether shipping wine or beverages, canned goods or coffee beans the various climatic environments the cargo travels through is strenuous and can destroy the quality of the product or the packaging.
Types of Thermal liners
The thermoregulation liner is a compact six-layer PE woven reflective liner that can be installed in a standard dry shipping container (mianowicie installation instructions). Once the thermoregulating liner is closed/zipped on the back of the container, the cargo inside is completely sealed and protected from all six walls, providing a sealed environment protected from temperature and humidity. Equally important when installing the TP Woven insert is the correct placement of the container. The thermoregulating insert is a great line of defense against all forms of radiation, in order to ensure the maximum and correct functioning of the thermoregulating insert, it is necessary to leave a gap between the cargo and the side walls of the container. By reducing the surface contact with the side walls, the conductive heat transfer is reduced by more than 85%, while the thermoregulating insert also allows to reflect infrared smoke coming from the steel walls.
Thermal liners - Carabiner system
Standardized thermal liner on the market. The liner is hung with carabiners on straps that must first pass through the eyelets container.
20 ft
40 ft DC
40 ft HC
Thermal liners - telescopis poles
A unique system with a patented utility model.
Quick and easy one-person installation without
they need tools or ladders.
20 ft
40 ft DC
40 ft HC
Thermal liners: Telescopic poles system, magnets
A unique system with a patented utility model. Quick and easy one-person installation without they need tools or ladders.
Offer:
- 20ftDC, 40ftDC, 40ftHC
- Instalation: 5 minutes
- Material: ALU/LDPE/HDPE/LDPE/MET
Packaging
Instalation manual
Thermal liner: Carabiner system
Standardized thermal liner on the market. The insert is suspended using carabiners on straps that must first pass through the container's eyelets.
Offer
- 20ftDC, 40ftDC, 40ftHC
- Instalation: 15 minutes
- Material: ALU/LDPE/HDPE/LDPE/MET
Packaging
Instalation manual
Insulating material for thermoregulation of the container

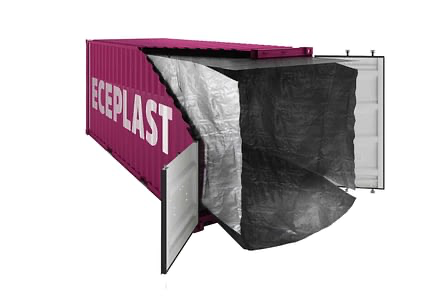

Thermoregulating liner is an isothermal cargo cover made for the inside of shipping containers (20ft, 40ft, 40ftHC). It is designed to protect cargo from irreversible damage caused by changes in temperature and humidity. By isolating odors and impurities, it
it also provides a hygienic environment.
Advantages of liners
Heat protection
Eliminates container rain
Reduces thermal shock
A barrier against contamination

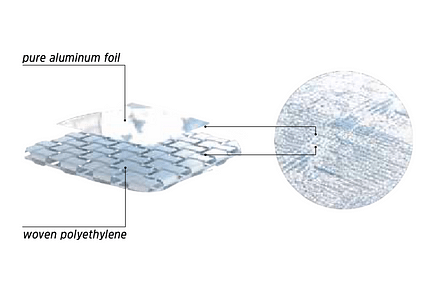

Material
Appearance
Our recommendation
The thermal container liners offer a very efficient solution for thermoregulation of the entire cargo space in a container. The thermoregulation liner protects the goods against high temperatures, reduces the thermal shocks at the loading point and final destination and protects goods from contamination.
Founder of Sopack, Ing. Karel Sodomka
Karel Sodomka
Advantages of transport with a thermoregulating insert - Case study
The following table shows temperature changes in situations where a thermal pad was/was not used. The measurement outside the thermoregulation insert is shown in red, the graph of the temperature inside the thermoregulation insert is shown in blue.
Advantages of Thermo liners
Heat protection
Eliminates container rain
Reduces thermal shock
A barrier against contamination
The insulating effect of the thermoregulating insert during temperature extremes
As a general rule, temperature differences between a container with and without a thermoregulation liner tend to vary between 5ºC and 20ºC depending on the route
Advantages of Thermo liners
Heat protection
Eliminates container rain
Reduces thermal shock
A barrier against contamination

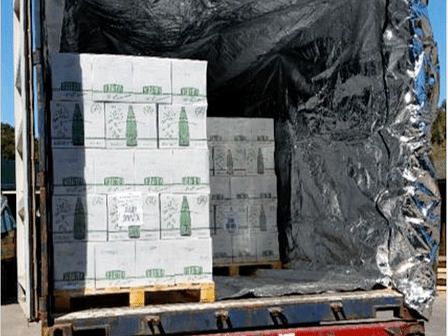

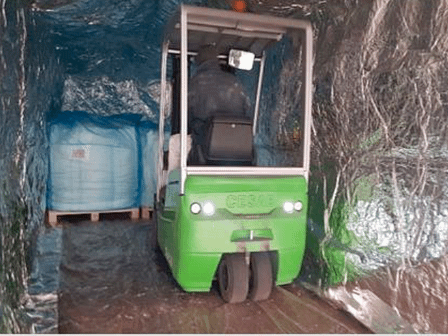

Application
